SAMPLE 1: FONX ANGEL & IPHONE 5
In this test report, Specific Absorption Rate (SAR) measurements for the mobile phone Apple iPhone 5 Model A1429 used with the cell phone case Fonx Angel (Sample 1) are presented.
The measurements were made according to the EN 62209-1 standard for evaluating the SAR level attenuation provided by the case.
REFERENCE DOCUMENTS
| Reference |
Document title |
Date |
| EN 62209-1 |
Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures
Part 1: Procedure to determine the specific absorption rate (SAR) for hand-held devices used in close proximity to the ear (frequency range of 300 MHz to 3 GHz) (IEC 62209-1:2005). |
2006 |
| IEC 62209-1 |
Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures
Part 1: Procedure to determine the specific absorption rate (SAR) for hand-held devices used in close proximity to the ear (frequency range of 300 MHz to 3 GHz). |
2005 |
PRESENTATION OF EQUIPMENT FOR TESTING PURPOSES

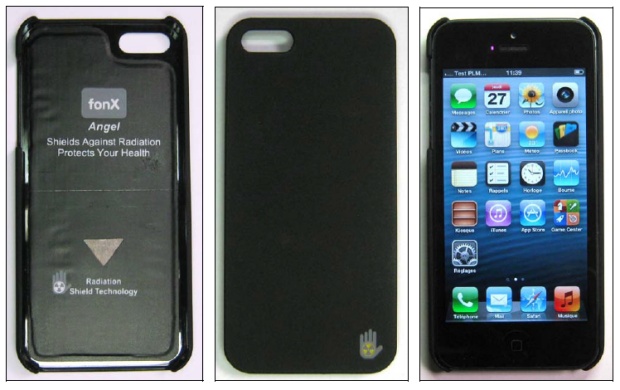

The photographs of the mobile phone Apple iPhone 5 Model A1429 and the cell phone case Fonx Angel (Sample 1) are shown below.
The standard used by the mobile phone for this test is the GSM in the 900MHz frequency band, the antenna is integrated.
TESTS RESULTS SUMMARY
| Configuration |
SAR level attenuation |
E-GSM900
Channel 038 (897.6 MHz) |
Apple iPhone 5 Model A1429 + Fonx Angel (Sample 1)
Tested on the right side and cheek position |
52.40% |
PHOTOGRAPHS OF THE MOBILE PHONE UNDER TEST

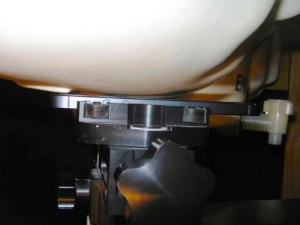

Mobile phone alone
in cheek position on right side. |

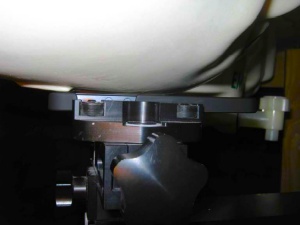

Mobile phone with the case
in cheek position on right side. |
|
|
|
