SAMPLE 3: FONX GHOST & IPHONE 5
In this test report, Specific Absorption Rate (SAR) measurements for the mobile phone Apple iPhone 5 Model A1429 used with the cell phone case Fonx Ghost (Sample 3) are presented.
The measurements were made according to the EN 62209-2 standard for evaluating the SAR level attenuation provided by the case.
REFERENCE DOCUMENTS
| Reference |
Document title |
Date |
| EN 62209-2 |
Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices - Human models, instrumentation, and procedures - Part 2:
procedure to determine the specific absorption rate (SAR) for mobile wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz). |
2010 |
| 1999/519/EC |
European Council Recommendation 1999/519/EC of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz). |
1999 |
PRESENTATION OF EQUIPMENT FOR TESTING PURPOSES

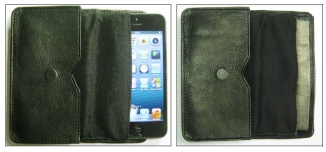

The photographs of the mobile phone Apple iPhone 5 Model A1429 and the cell phone case Fonx Ghost (Sample 3) are shown below.
The standard used by the mobile phone for this test is the WCDMA in the 2100MHz frequency band, the antenna is integrated.
The intended use of the mobile phone for these measurements, as specified by the applicant, is to be worn against the body. The mobile phone with and without the case was placed against the flat phantom.

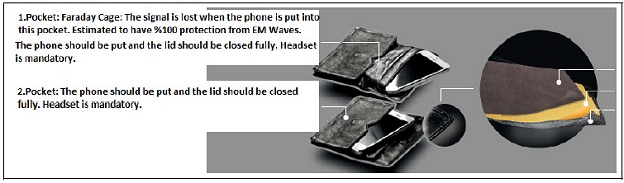

The case can be used in 1-Pocket and 2-Pocket as described below by the applicant.
Mobile phone inside the 1-Pocket
 |
Mobile phone inside the 2-Pocket
|
Note: all removable parts of the pockets were closed during the testing.
These pictures are shown to illustrate the way of insertion of the mobile phone into the case.
TESTS RESULTS SUMMARY
| Configuration |
SAR level attenuation |
WCDMA 2100
Channel 9750 (1950.0 MHz) |
| Apple iPhone 5 Model A1429 + Fonx Ghost (Sample 3) 1-Pocket |
See Note |
Apple iPhone 5 Model A1429 + Fonx Ghost (Sample 3) 2-Pocket
Tested in body worn configuration at 0 cm |
97.6% |
Note: no radio link between mobile phone and radio test set.
PHOTOGRAPHS OF THE MOBILE PHONE UNDER TEST

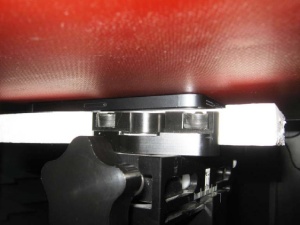

Rear side of the mobile phone
alone at 0cm from the phantom. |

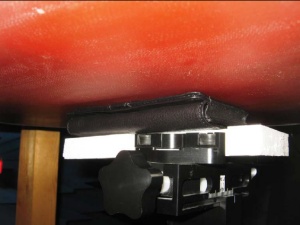

Rear side of the mobile phone
inside the case at 0cm from the phantom |
|
|
|
